Sculptor Wall
A Colossal Filament in the Southern Sky
Quick Reader
| Attribute | Details |
|---|---|
| Name | Sculptor Wall |
| Type | Galaxy Filament / Large-Scale Structure |
| Location | Constellations Sculptor, Grus, Phoenix, and Fornax |
| Distance from Earth | ~200–250 million light-years (60–75 Mpc) |
| Approx. Size | ~500 million light-years in length |
| Discovery | Identified through redshift surveys (2dF, 6dF, and CfA) |
| Main Components | NGC 253 (Sculptor Galaxy), NGC 55, NGC 300, NGC 247, several groups and clusters |
| Morphology | Extended sheet-like filament bordering the Sculptor Void |
| Neighboring Structures | Fornax Wall, Grus–Phoenix Filament, and Sculptor Group |
| Dominant Galaxies | Spiral-rich, star-forming systems |
| Composition | Galaxies, intergalactic gas, dark matter filament |
| Scientific Relevance | Studies of large-scale structure, cosmic flow, and galaxy evolution |
| Visibility | Southern Hemisphere; best observed from September to January |
Introduction — The Hidden Giant of the Southern Hemisphere

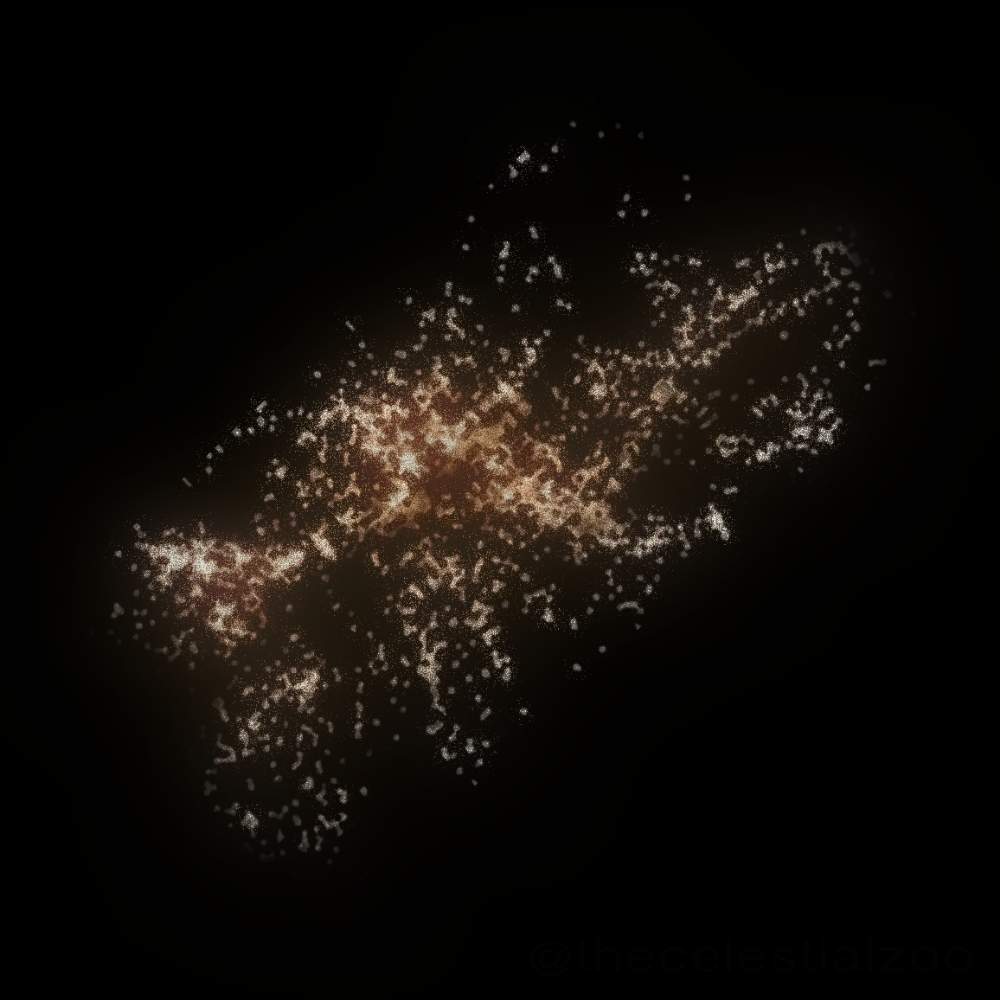

Stretching across the constellations Sculptor, Grus, and Phoenix, the Sculptor Wall is one of the largest coherent galaxy structures visible from the Southern Hemisphere.
It forms a vast sheet-like filament that spans nearly 500 million light-years, serving as a boundary of the Sculptor Void and connecting several galaxy clusters and groups into a continuous ridge.
While the Virgo Supercluster dominates the northern sky, the Sculptor Wall reveals the southern complement of the cosmic web — a colossal bridge of galaxies, gas, and dark matter shaping the local universe on grand scales.
The Discovery of the Sculptor Wall
The Sculptor Wall was first hinted at in mid-20th-century galaxy catalogs, but its true extent became clear only through redshift surveys conducted in the late 20th and early 21st centuries.
Data from projects such as:
CfA Redshift Survey
2dF Galaxy Redshift Survey
6dF Galaxy Survey
… revealed that galaxies in the Sculptor and Fornax regions cluster along an elongated filament, sharing nearly identical radial velocities — confirming a coherent, wall-like structure in three-dimensional space.
This discovery cemented the Sculptor Wall’s role as a key component of the local large-scale structure, parallel to the better-known Perseus–Pisces Supercluster in the north.
Structure and Extent
Morphology and Position
The Sculptor Wall lies roughly perpendicular to the line of sight from Earth, forming a sheet-like feature that appears edge-on from our perspective. It is composed of multiple galaxy groups and clusters arranged along a continuous filament.
Major Constituents
| Region / Group | Dominant Galaxies | Notes |
|---|---|---|
| Sculptor Group | NGC 253, NGC 55, NGC 300, NGC 247 | Nearest portion of the wall; spiral-rich and active |
| Fornax Cluster Extension | NGC 1316, NGC 1399 | Eastern edge of the wall; merges into Fornax Wall |
| Grus–Phoenix Region | NGC 7424, NGC 7213 | Southern section; moderate density filament |
| Sculptor Void Boundary | Sparse dwarfs and isolated spirals | Defines one side of the Sculptor Void |
These components form a continuous ridge of mass, separating the underdense Sculptor Void from the denser Fornax–Eridanus region.
The Sculptor Group — Gateway to the Wall
The Sculptor Group, located just ~12 million light-years away, marks the nearest visible front of the Sculptor Wall.
It includes prominent galaxies like:
NGC 253 (The Silver Coin Galaxy) — a massive spiral with active starburst regions.
NGC 300 — a face-on spiral galaxy often compared to the Milky Way in structure.
NGC 55 — an edge-on barred spiral similar to the Large Magellanic Cloud.
NGC 247 — an intermediate spiral with irregular dust lanes.
These galaxies not only define the foreground of the wall but also act as anchors for deeper structures extending hundreds of millions of light-years behind them.
The Sculptor Group provides astronomers with a nearby laboratory for studying galaxy evolution within filaments, as its members show how gas flows, star formation, and tidal interactions operate within large-scale structures.
Relationship with Neighboring Cosmic Structures
The Sculptor Wall does not exist in isolation. It forms part of a southern large-scale network that includes:
The Fornax Wall, located just beyond the Fornax Cluster.
The Grus–Phoenix Filament, a thinner chain of galaxies extending further south.
The Eridanus–Pavo–Indus Supercluster, forming another massive sheet beyond Sculptor.
Together, these structures define a web-like region of the southern sky stretching over 1 billion light-years.
The Sculptor Wall thus acts as a cosmic divider, marking the boundary between a vast underdense void and a denser sheet of clustered galaxies — one of the most striking contrasts in the nearby universe.
Observational Highlights — How We See the Wall
In Optical Wavelengths
The Sculptor Wall’s nearest members (like NGC 253 and NGC 300) are among the brightest galaxies in the southern sky.
Amateur astronomers can observe them with small telescopes, while deeper surveys reveal the fainter background layers that define the wall’s full scale.
In Infrared and Radio
Infrared mapping (2MASS, WISE) and radio HI surveys have uncovered:
Extended neutral hydrogen streams, indicating ongoing matter exchange between galaxies.
Filamentary gas bridges, confirming the continuous nature of the structure.
Hidden dwarf galaxies embedded in dark matter halos along the filament.
X-ray Observations
Clusters within the wall, such as those near Fornax, emit diffuse X-ray radiation, revealing hot intracluster gas — evidence of active gravitational binding and past mergers.
Scientific Importance — Why Sculptor Wall Matters
Local Large-Scale Structure Studies
It provides one of the clearest examples of a southern sky filament and its relationship to voids and clusters.Dark Matter Distribution
Mapping the wall helps trace the underlying dark matter skeleton of the local universe.Galaxy Evolution
The gradual transition from star-forming spirals to quenched lenticulars across the wall illustrates environmental effects on galaxies.Cosmic Flow Models
Galaxy velocities in the Sculptor Wall help refine mass-flow maps within the Local Volume, especially around the Sculptor and Fornax Voids.
Observing from Earth — Best Viewing Seasons
Visibility: Best from Southern Hemisphere observatories (Chile, South Africa, Australia).
Peak Months: September to January.
Main Targets: NGC 253 (mag 7.1), NGC 300 (mag 8.7), and NGC 55 (mag 7.9).
Best Instruments: Wide-field optical and IR telescopes for structural imaging; radio arrays for HI mapping.
The Filamentary Anatomy of the Sculptor Wall
The Sculptor Wall is not a single uniform sheet, but a layered filamentary system composed of multiple galaxy groups, smaller filaments, and gravitational nodes interconnected through dark matter. This structure reveals the hierarchical nature of the cosmic web — small filaments merge into large walls, and walls form the framework of superclusters.
Layered Structure
Astronomers identify three main components along the Sculptor Wall’s axis:
| Section | Approx. Distance (Mly) | Dominant Groups | Characteristics |
|---|---|---|---|
| Near Front (Foreground Layer) | 10–20 | Sculptor Group (NGC 253, NGC 55, NGC 300) | Bright, gas-rich spirals; active star formation |
| Intermediate Layer | 100–150 | NGC 1316 (Fornax A), NGC 1399 | Rich group core merging into Fornax Wall |
| Distant Layer (Background Ridge) | 200–250 | Grus–Phoenix filament, NGC 7213 region | Fainter, elongated filament extending toward Eridanus–Pavo wall |
These three layers form a spatially coherent plane, visible in redshift space as a continuous slab separating the Sculptor Void from the denser southern large-scale structures.
Relationship with the Sculptor Void
One of the defining characteristics of the Sculptor Wall is its boundary function.
On one side lies the Sculptor Void, a massive underdense region roughly 200 million light-years wide.
On the other side, the wall connects to the Fornax–Eridanus–Pavo complex, one of the densest galaxy concentrations in the Southern Hemisphere.
The Sculptor Void
Size: ~200 million light-years in diameter
Galaxy Density: < 10% of the cosmic average
Temperature: Low-density regions contain cold intergalactic gas
Significance: Helps astronomers study the expansion of voids and the motion of matter along their edges
The wall–void boundary acts like a cosmic coastline, where galaxies cluster densely on one side and gradually fade into emptiness on the other.
This gradient provides a natural laboratory for testing cosmic expansion dynamics, as voids expand while walls remain gravitationally bound.
Interaction Between Filaments and Clusters
The Sculptor Wall links several major galaxy groups and clusters that interact gravitationally. Their alignment reveals matter flow channels, where gas and galaxies move toward deeper gravitational wells such as the Fornax Cluster.
Key Interaction Zones
| Interaction Region | Connected Structures | Flow Direction | Notes |
|---|---|---|---|
| Sculptor → Fornax Corridor | Sculptor Group to Fornax Cluster | Eastward | Filament acts as a bridge feeding gas and galaxies into Fornax |
| Fornax → Eridanus Ridge | Fornax Wall to Eridanus Supercluster | Southeast | Continuous sheet connecting major clusters |
| Grus–Phoenix Chain | Background filament | Southward | Extends toward Pavo–Indus, suggesting shared dark matter envelope |
These interconnections demonstrate that the Sculptor Wall is not isolated, but a transit highway for matter flow across the southern cosmic web.
Galaxy Environments Along the Wall
The galaxies that populate the Sculptor Wall exhibit diverse evolutionary stages, determined largely by their position within the filament.
| Environment | Typical Galaxy Type | Star Formation | Gas Content | Example |
|---|---|---|---|---|
| Sculptor Group (Low Density) | Spiral, irregular | High | Gas-rich | NGC 253, NGC 300 |
| Fornax Region (Moderate Density) | Elliptical, lenticular | Low | Gas-poor | NGC 1399, NGC 1404 |
| Grus–Phoenix Segment (Intermediate) | Mixed | Moderate | Mixed | NGC 7213, NGC 7424 |
| Void Edge (Low Density) | Dwarf, irregular | Variable | Low | Small field dwarfs near Sculptor boundary |
Key Observations
- Star formation is enhanced near the filament’s outer regions where gas inflow continues.
- Quenching (cessation of star formation) occurs near denser hubs, such as the Fornax and Eridanus clusters.
- Gas stripping is evident in galaxies approaching massive clusters, showing environmental effects across the wall.
This environmental gradient provides evidence for the morphology–density relation — galaxies evolve differently based on their position within the large-scale structure.
Gas Flows and Magnetic Fields in the Sculptor Wall
Recent radio and X-ray surveys (e.g., ASKAP, MeerKAT, eROSITA) have revealed filamentary gas flows and faint magnetic alignments within the Sculptor Wall.
Key Findings:
HI Filaments: Neutral hydrogen bridges stretch between galaxies, indicating continuous gas exchange.
Warm–Hot Intergalactic Medium (WHIM): Traced in X-rays; thought to hold a large fraction of the universe’s “missing baryons.”
Magnetic Coherence: Radio polarization data suggest that large-scale magnetic fields align along filament axes, influencing cosmic ray propagation and star formation.
Together, these findings show that the Sculptor Wall is not just a geometric boundary — it’s an active, magnetized medium where cosmic energy, matter, and fields interact dynamically.
Cosmic Flows and Gravitational Influence
The motion of galaxies within the Sculptor Wall is influenced by competing forces:
Gravitational attraction from the Fornax and Pavo clusters
Expansion pressure from the Sculptor Void
Overall cosmic expansion driven by dark energy
By analyzing peculiar velocities from Cosmicflows-3 data, astronomers find:
Matter streams along the wall, converging into Fornax.
The void-side galaxies exhibit outward drift, consistent with void expansion.
The entire region is part of the Laniakea Supercluster’s periphery, meaning Sculptor galaxies ultimately contribute to the same cosmic flow basin as the Virgo region.
This makes the Sculptor Wall an essential southern counterpart to the structures that feed the Local Supercluster, illustrating the global coherence of cosmic flows.
Observational Challenges
Studying the Sculptor Wall is challenging because of its orientation and faintness:
Edge-on Orientation: Hard to separate depth structures along the line of sight.
Low Surface Brightness Galaxies: Many members are dim dwarfs or diffuse spirals.
Foreground Contamination: Milky Way stars and dust interfere with southern-sky imaging.
Large Angular Size: Requires wide-field surveys to capture its full extent.
To overcome these, astronomers use multiwavelength datasets — combining optical, IR, radio, and X-ray data to reconstruct a 3D map of the Sculptor region, revealing its full complexity.
Galaxy Environments Along the Wall
The galaxies that populate the Sculptor Wall exhibit diverse evolutionary stages, determined largely by their position within the filament.
| Environment | Typical Galaxy Type | Star Formation | Gas Content | Example |
|---|---|---|---|---|
| Sculptor Group (Low Density) | Spiral, irregular | High | Gas-rich | NGC 253, NGC 300 |
| Fornax Region (Moderate Density) | Elliptical, lenticular | Low | Gas-poor | NGC 1399, NGC 1404 |
| Grus–Phoenix Segment (Intermediate) | Mixed | Moderate | Mixed | NGC 7213, NGC 7424 |
| Void Edge (Low Density) | Dwarf, irregular | Variable | Low | Small field dwarfs near Sculptor boundary |
Key Observations
- Star formation is enhanced near the filament’s outer regions where gas inflow continues.
- Quenching (cessation of star formation) occurs near denser hubs, such as the Fornax and Eridanus clusters.
- Gas stripping is evident in galaxies approaching massive clusters, showing environmental effects across the wall.
This environmental gradient provides evidence for the morphology–density relation — galaxies evolve differently based on their position within the large-scale structure.
Evolution and Cosmic Role of the Sculptor Wall
The Sculptor Wall stands as one of the finest southern examples of a large-scale structure bridging the gap between local galaxy groups and faraway superclusters. Its evolution over billions of years shows how gravity, dark matter, and cosmic expansion interplay to shape the universe’s architecture.
Formation and Growth
Shortly after the recombination era (~380,000 years after the Big Bang), matter began to clump under gravity. Regions of higher density grew into filaments of dark matter and baryonic gas.
The Sculptor region condensed along one such filament, forming what we now observe as the Sculptor Wall.
Over time, smaller halos merged into:
The Sculptor Group, representing the near foreground;
The Fornax Cluster and its wall, forming a gravitational hub; and
The Grus–Phoenix Ridge, extending toward the Pavo–Indus sector.
This hierarchical growth followed the same cosmic pattern that built all superclusters: small-scale condensation → filament merger → sheet formation → gravitational equilibrium.
Present-Day Stability
Today, the Sculptor Wall spans roughly 500 million light-years, forming a massive sheet of galaxies and gas stabilized by dark matter.
However, the structure is only partially gravitationally bound — the weaker outer filaments are slowly stretching apart due to cosmic expansion.
Simulations indicate that:
The core regions (around Fornax) will remain gravitationally stable for billions of years.
The outer Sculptor and Grus filaments will gradually detach, joining the general Hubble flow.
The Sculptor Void will continue to expand, making the contrast between the wall and void even sharper.
Thus, the Sculptor Wall is entering a mature phase — dynamically quiet, but still evolving through gradual drift and group mergers.
Dark Energy and the Wall’s Future
As dark energy continues to accelerate universal expansion, the Sculptor Wall will slowly lose its interconnectivity with other large-scale structures.
Predicted Evolution:
In the next 10–20 billion years, its distant ends will recede beyond gravitational influence.
Local clusters like Fornax will retain bound satellites, becoming “island universes.”
Beyond 100 billion years, the larger wall will fragment entirely, leaving isolated galaxies invisible to one another.
This long-term scenario underscores the temporary nature of even the grandest cosmic structures. The Sculptor Wall we see today exists in a fleeting window of cosmic history — a bridge illuminated between formation and dissolution.
Comparative Analysis with Neighboring Structures
| Property | Sculptor Wall | Fornax Wall | Pavo–Indus Supercluster | Eridanus–Pavo Chain |
|---|---|---|---|---|
| Distance (Mly) | 200–250 | 300 | 350–450 | 400+ |
| Dominant Galaxies | NGC 253, NGC 300 | NGC 1399, NGC 1316 | NGC 6872, NGC 6744 | Mixed spirals |
| Density | Moderate | High | High | Intermediate |
| Structure Type | Filamentary wall | Compact wall | Supercluster sheet | Filament bridge |
| Environment | Border of Sculptor Void | Dense cluster wall | Great Attractor extension | Transitional region |
The Sculptor Wall plays the same cosmic role in the south that the Perseus–Pisces Wall plays in the north: a massive, elongated filament that defines the edge of a vast cosmic void while connecting neighboring high-density regions.
Together, these walls illustrate the global symmetry of the cosmic web — where structure and emptiness alternate across billions of light-years, forming the universe’s invisible scaffolding.
Role in the Laniakea and Cosmic Flow Network
Recent velocity-field reconstructions (from Cosmicflows-3 and 6dFGS) show that the Sculptor Wall lies at the southern periphery of the Laniakea Supercluster — the vast basin of attraction containing Virgo, Hydra–Centaurus, and Fornax.
Flow Directions:
Toward Fornax and Hydra–Centaurus: The Sculptor Wall’s inner filaments feed mass inward.
Away from the Sculptor Void: Outer galaxies expand outward, tracing local Hubble flow lines.
This dual flow pattern demonstrates how walls like Sculptor serve as cosmic valves, channeling matter between voids and dense nodes — keeping the cosmic ecosystem in motion.
Frequently Asked Questions (FAQ)
Q1. What exactly is the Sculptor Wall?
It’s a colossal filament of galaxies forming a wall-like structure about 500 million light-years long, separating the Sculptor Void from denser southern superclusters.
Q2. How far is the Sculptor Wall from Earth?
Its central ridge lies about 200–250 million light-years away, though its nearest members (Sculptor Group) are much closer at ~12 million light-years.
Q3. Why is it called a “wall”?
Because galaxies within it are arranged in a vast, sheet-like pattern, resembling a wall of matter bordering an immense cosmic void.
Q4. What are its main galaxies?
The brightest and most studied members include NGC 253, NGC 55, NGC 300, and the Fornax Cluster galaxies (NGC 1399, NGC 1316).
Q5. How does the Sculptor Wall compare to northern structures like Perseus–Pisces?
It’s nearly similar in scale but less dense, providing a southern mirror to the Perseus–Pisces chain in terms of cosmic geometry.
Q6. What will happen to it in the far future?
As dark energy accelerates expansion, the wall will fragment, leaving isolated galaxy clusters — its large-scale coherence will eventually vanish.
Related Reading:
Fornax Wall – The Dense Edge of the Southern Universe
Pavo–Indus Supercluster – The Great Southern Extension
Sculptor Group – Gateway to the Wall
Cosmic Voids – The Empty Counterparts of Galaxy Walls
Laniakea Supercluster – The Gravitational Home of Our Local Universe
Final Thoughts
The Sculptor Wall is more than a cosmic boundary — it’s a living cross-section of how the universe organizes itself. It illustrates the delicate balance between gravitational clustering and cosmic expansion, between density and emptiness, between permanence and impermanence.
Its galaxies — from the nearby NGC 253 to the distant Fornax core — represent different epochs of evolution along a single gravitational thread. And as the universe expands, the Sculptor Wall reminds us that even the largest known structures are temporary patterns in an ever-changing cosmic web.
Understanding it helps us not only map the geometry of the cosmos, but also witness the grand process by which the universe builds, connects, and eventually lets go.
