X-Ray Telescopes
Unlocking the High-Energy Universe
Quick Reader
| Attribute | Details |
|---|---|
| Purpose | Observing high-energy astrophysical phenomena |
| Observation Type | X-ray (0.1 to 100 keV) |
| Telescope Type | Space-based (due to atmospheric absorption) |
| Primary Targets | Black holes, neutron stars, galaxy clusters, supernova remnants |
| Key Missions | Chandra, XMM-Newton, NuSTAR, ROSAT, Hitomi, eROSITA |
| Launch Locations | Earth orbit, Lagrange points |
| Optics Used | Grazing-incidence mirrors (Wolter I type) |
| Resolution Range | ~0.5 arcseconds (Chandra) to 10 arcseconds (eROSITA) |
| Notable Discoveries | Imaging black hole environments, dark matter mapping in clusters |
| Atmospheric Transparency | Opaque to X-rays; Earth’s atmosphere blocks all X-ray signals |
| Importance | Studies most violent and energetic processes in the universe |
| First Light Missions | 1960s: Uhuru (first X-ray astronomy satellite) |
| Modern Observatories | Chandra (NASA), XMM-Newton (ESA), NuSTAR (NASA), eROSITA (Germany/Russia) |
Introduction: Why We Need X-Ray Telescopes
X-rays are produced by some of the hottest, densest, and most energetic phenomena in the cosmos. These include:
Accreting black holes
Neutron stars and pulsars
Supernova shockwaves
Colliding galaxy clusters
Hot intergalactic gas
But there’s a problem: Earth’s atmosphere blocks X-rays completely. Unlike visible light or radio waves, X-rays don’t reach the ground. This means all X-ray telescopes must operate from space-based platforms—orbiting far above Earth’s shielding atmosphere.
As a result, X-ray astronomy is relatively young compared to optical or radio astronomy, but it has revolutionized our understanding of cosmic violence and energy.
How X-Ray Telescopes Work
1. Grazing-Incidence Mirrors
Traditional mirrors can’t reflect X-rays directly; they pass right through or get absorbed. Instead, X-ray telescopes use grazing-incidence optics, where X-rays strike mirrors at shallow angles and reflect like stones skipping on water.
This setup—typically a Wolter I design—uses nested cylindrical or parabolic mirrors to focus the X-rays onto detectors.
2. High-Resolution Detectors
X-ray photons are counted individually, with sensitive detectors like:
Charge-Coupled Devices (CCDs)
Microcalorimeters (for spectral precision)
Proportional counters
These measure both energy and timing, allowing astronomers to study the spectral signature and variability of cosmic sources.
A Brief History of X-Ray Astronomy
| Year | Mission | Contribution |
|---|---|---|
| 1962 | Rocket-based discovery | Detected X-ray emission from Scorpius X-1 |
| 1970 | Uhuru (NASA) | First dedicated X-ray satellite; catalogued 339 X-ray sources |
| 1978 | Einstein Observatory | First imaging X-ray telescope |
| 1999 | Chandra X-ray Observatory | Sub-arcsecond resolution; benchmark for X-ray imaging |
| 1999 | XMM-Newton | Large collecting area; strong in spectroscopy |
| 2012 | NuSTAR | High-energy X-ray focus; first orbiting hard X-ray telescope |
| 2019 | eROSITA | All-sky X-ray survey; probing dark energy with galaxy clusters |
These missions laid the foundation for studying phenomena invisible to traditional telescopes.
Key Space-Based X-Ray Observatories

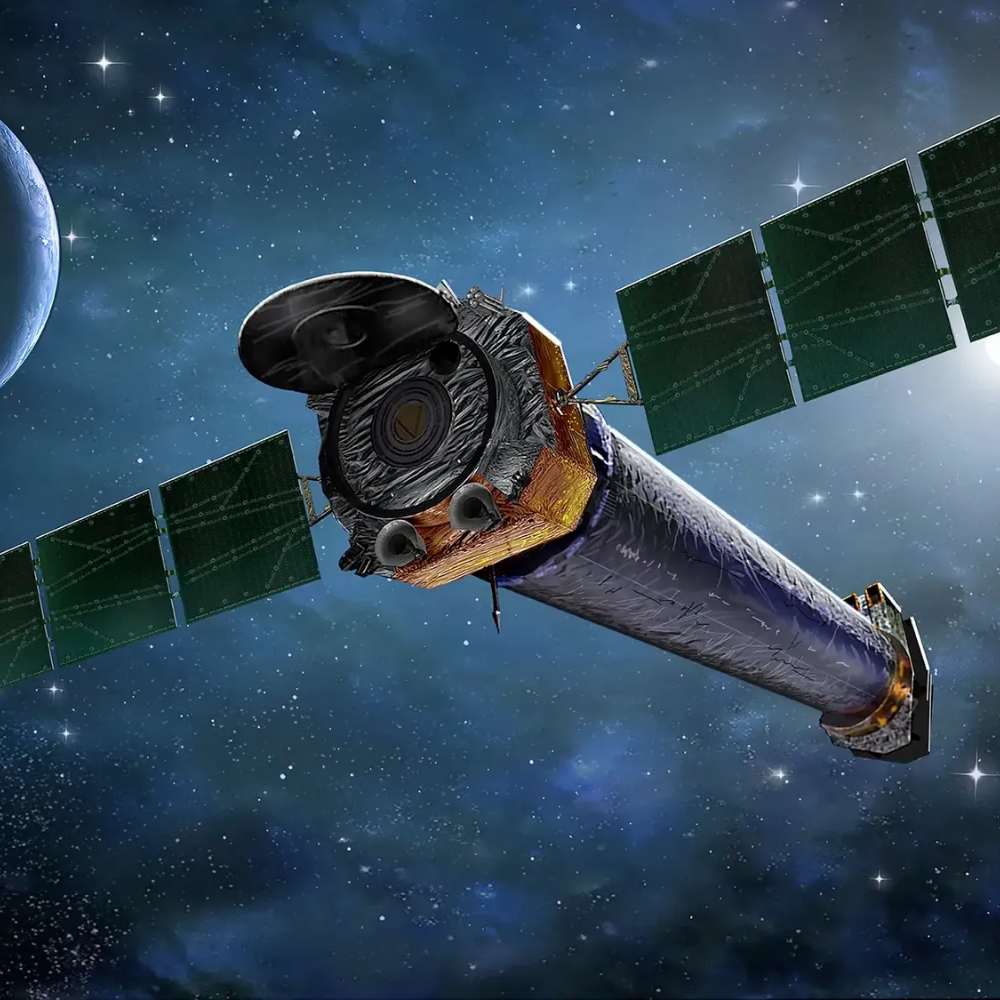

1. Chandra X-ray Observatory (NASA)
Launch: 1999 via Space Shuttle Columbia
Mirror Resolution: ~0.5 arcseconds (best to date)
Orbit: Highly elliptical (~64 hours per orbit)
Scientific Highlights:
First detailed images of X-ray jets from quasars and black holes
Revealed shockwaves in galaxy clusters
Observed dark matter separation in the Bullet Cluster
Studied X-ray halos and remnants from Type II supernovae
Chandra is still operational and is considered the gold standard in X-ray imaging.
2. XMM-Newton (ESA)
Launch: 1999
Mirror System: 3 telescopes, 58 nested mirrors
Strength: Wide field-of-view, spectroscopy
Highlights:
High sensitivity to faint X-ray sources
Mapping neutron stars, supernova remnants
Tracing X-ray binaries and AGN variability
Excellent for time-domain astronomy
XMM-Newton is ideal for studying large-scale X-ray environments like clusters and halos.
3. NuSTAR (NASA)
Launch: 2012
Specialty: Focused hard X-rays (3–79 keV)
Optics: Nested multilayer-coated mirrors
Significance:
First focusing telescope in the hard X-ray range
Studies black hole spin, magnetars, pulsars
Detected hidden AGN behind dust clouds
Revealed unexpected X-ray activity in Sagittarius A*
NuSTAR opened a new window for high-energy astrophysics.
4. eROSITA (Germany/Russia)
Launch: 2019 aboard Spektr-RG
Purpose: First all-sky survey in medium-energy X-rays
Impact:
Completed first deep X-ray map of the entire sky
Detected over 4 million X-ray sources
Helps in cosmic structure mapping
Aids studies of dark energy using galaxy cluster evolution
Science in Action: What X-Ray Telescopes Have Revealed
1. Black Hole Environments
X-rays allow us to probe the innermost accretion disks, relativistic jets, and hot coronae surrounding black holes.
Chandra and XMM-Newton imaged Cygnus X-1 and Sagittarius A* in action
NuSTAR measured the spin of distant black holes
X-ray flares expose feeding patterns of supermassive black holes
2. Neutron Stars and Magnetars
Pulsars, neutron stars, and exotic magnetars are strong X-ray sources due to:
Surface thermal emission
Magnetic field decay
Accretion from binary companions
XMM-Newton and NuSTAR helped detect new magnetars and strange X-ray pulsars.
3. Galaxy Cluster Mapping
Hot intracluster gas (millions of degrees) emits X-rays, visible only via X-ray telescopes.
Chandra revealed merger dynamics in the Bullet Cluster
eROSITA now catalogs thousands of clusters to trace dark matter and cosmic web formation
Beyond the Known: Transient and Exotic Events
X-ray observatories are vital for detecting:
X-ray bursts from neutron star collisions
Tidal disruption events from stars being shredded by black holes
Gamma-ray burst afterglows in X-ray bands
Supernova remnants cooling over time
This domain of astrophysics depends on long-term monitoring and rapid-response instruments.
Future Missions and Next-Generation X-Ray Astronomy
1. XRISM (X-Ray Imaging and Spectroscopy Mission)
Agency: JAXA (Japan) with NASA and ESA collaboration
Expected Launch: 2025
Purpose: Replace Hitomi with high-resolution spectroscopy
Key Instrument: Resolve – a microcalorimeter for precise energy detection
XRISM will be essential for studying the dynamics of hot gas, galaxy feedback, and cluster composition with unprecedented spectral detail.
2. Athena (Advanced Telescope for High-ENergy Astrophysics)
Agency: European Space Agency (ESA)
Launch Target: Early 2030s
Key Features:
12-meter focal length
Wide Field Imager
High-resolution X-ray Integral Field Unit (X-IFU)
Athena is designed to probe supermassive black holes, galaxy evolution, and the missing baryon problem.
3. Lynx X-ray Observatory
Proposed by: NASA
Purpose: Next-gen successor to Chandra
Goal: Sub-arcsecond resolution with a 30x increase in sensitivity
Lynx could explore the first black holes, early supernova remnants, and X-ray background contributors in the early universe.
X-Ray Telescopes vs. Other Telescope Types
| Feature | X-Ray Telescopes | Optical Telescopes | Radio Telescopes |
|---|---|---|---|
| Wavelength Range | 0.1–100 keV | 400–700 nm | 1 mm – 10 m |
| Location | Space only | Ground and space | Mostly ground-based |
| Observes | High-energy objects | Stars, galaxies, nebulae | Cold gas, pulsars |
| Mirrors Required | Grazing incidence optics | Parabolic or segmented | Dish antennas |
| Resolution | Up to 0.5 arcseconds | Sub-arcsecond possible | Depends on array size |
| Examples | Chandra, XMM, NuSTAR | Hubble, Webb, Subaru | VLA, ALMA |
X-ray telescopes provide unique access to extreme astrophysical conditions unavailable through other wavebands.
Frequently Asked Questions (FAQ)
Q: Why can’t X-ray telescopes operate from Earth?
A: X-rays are absorbed by Earth’s atmosphere. Even the highest mountain observatories can’t detect cosmic X-rays. That’s why X-ray observatories must be launched into space.
Q: What are grazing-incidence mirrors?
A: These are mirrors set at very shallow angles, allowing X-rays to reflect instead of being absorbed. They are critical for focusing X-rays, as traditional mirrors do not work.
Q: What kinds of cosmic objects emit X-rays?
A: X-rays are emitted by:
Accreting black holes
Neutron stars and pulsars
Supernova remnants
Galaxy clusters
Hot plasma in star-forming regions
Q: What is Chandra’s greatest contribution?
A: Chandra has provided the sharpest X-ray images of cosmic structures, including:
Imaging jets from black holes
Detecting hot intergalactic gas
Mapping dark matter via X-ray cluster shapes
Q: Can amateur astronomers use X-ray telescopes?
A: No. X-ray astronomy requires space-based observatories with advanced shielding, cooling, and pointing systems. However, data from missions like Chandra and XMM-Newton are publicly accessible, so amateur astronomers and students can analyze real X-ray data.
Final Thoughts
X-ray telescopes have opened a previously invisible realm of the universe—one governed by high energy, gravity, and cosmic violence. From supernovae to supermassive black holes, these observatories unveil physics that is inaccessible through visible light.
As new missions like XRISM, Athena, and Lynx push the boundaries of sensitivity and resolution, X-ray astronomy is entering a golden era. These instruments will help answer fundamental questions about dark matter, black hole formation, cosmic structure, and more.
For explorers of the high-energy universe, X-ray telescopes are our most powerful tools.
